Retainer Ring R1000-043

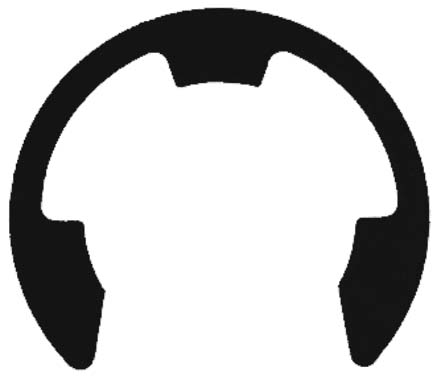

Retainer Ring R1000-043 The universally used radially assembled circlip for shafts. The groove is gripped by 3 tabs. Applications in vehicle construction, optical and electronic industry, and light mechanical industry. Cross reference to 1000, 1500, 5133, ms-16633 series. S.A.E. 1060-1090 Spring steel. Phosphate & oil finish. Industry #: 43, Shaft Size: 7/16” (0.438), Ring Outside Diameter: 0.687, Ring Thickness: 0.035, Groove Diameter: 0.34, Groove Depth: 0.05, Groove Width: 0.039, Weight (lbs.)/100 Pieces: 0.15, Package Quantity: 10
Key Details
| Brand: | Dynaline industries |
| Item No.: | 22865 |
| Status: | Stocking |
| pkgqty: | 10 |
| Specifications: | 0.039 |
| 0.05 | |
| 0.687 | |
| 0.035 |
