Retainer Ring R1000-087

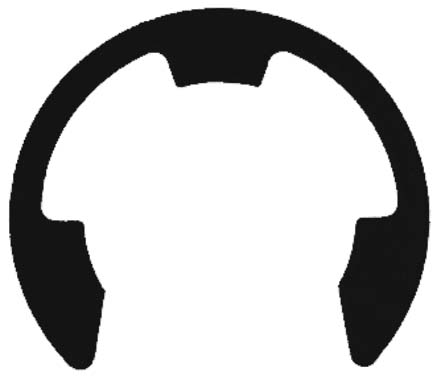

Retainer Ring R1000-087 The universally used radially assembled circlip for shafts. The groove is gripped by 3 tabs. Applications in vehicle construction, optical and electronic industry, and light mechanical industry. Cross reference to 1000, 1500, 5133, ms-16633 series. S.A.E. 1060-1090 Spring steel. Phosphate & oil finish. Industry #: 87, Shaft Size: 7/8” (0.875), Ring Outside Diameter: 1.3, Ring Thickness: 0.05, Groove Diameter: 0.68, Groove Depth: 0.1, Groove Width: 0.056, Weight (lbs.)/100 Pieces: 0.76, Package Quantity: 10
Key Details
| Brand: | Dynaline industries |
| Item No.: | 22869 |
| Status: | Stocking |
| pkgqty: | 10 |
| Specifications: | 0.056 |
| 0.1 | |
| 1.3 | |
| 0.05 |
