Retainer Ring R1000-075

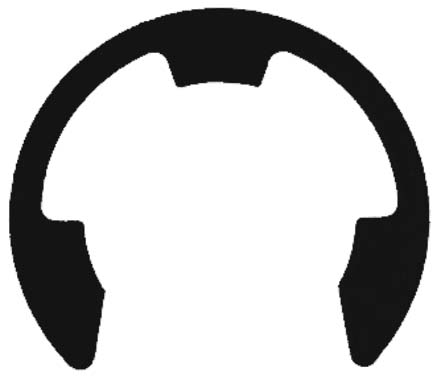

Retainer Ring R1000-075 The universally used radially assembled circlip for shafts. The groove is gripped by 3 tabs. Applications in vehicle construction, optical and electronic industry, and light mechanical industry. Cross reference to 1000, 1500, 5133, ms-16633 series. S.A.E. 1060-1090 Spring steel. Phosphate & oil finish. Industry #: 75, Shaft Size: 3/4” (0.75), Ring Outside Diameter: 1.12, Ring Thickness: 0.05, Groove Diameter: 0.58, Groove Depth: 0.09, Groove Width: 0.056, Weight (lbs.)/100 Pieces: 0.58, Package Quantity: 10
Key Details
| Brand: | Dynaline industries |
| Item No.: | 22868 |
| Status: | Stocking |
| pkgqty: | 10 |
| Specifications: | 0.056 |
| 0.09 | |
| 1.12 | |
| 0.05 |
Retainer Ring R1000-037
0.039
Retainer Ring R1000-043
0.039
Retainer Ring R1000-050
0.046
Retainer Ring R1000-087
0.056
Retainer Ring R1000-098
0.056
Retainer Ring R1000-118
0.068
Retainer Ring R1000-137
0.068
Retainer Ring R3000-025
0.02
Retainer Ring R3000-031
0.02
Retainer Ring R3000-037
0.029
Retainer Ring R3000-043
0.029
Retainer Ring R3000-050
0.039
Retainer Ring R3000-056
0.039
Retainer Ring R3000-062
0.039
Retainer Ring R3000-068
0.039
Retainer Ring R3000-075
0.039
Retainer Ring R3000-087
0.046
Retainer Ring R3000-093
0.046
Retainer Ring R3000-100
0.046
Retainer Ring R3000-106
0.056
Retainer Ring R3000-112
0.056
Retainer Ring R3000-118
0.056
Retainer Ring R3000-125
0.056
Retainer Ring R3000-131
0.056
Retainer Ring R3000-137
0.056
Retainer Ring R3000-143
0.056
Retainer Ring R3000-150
0.056
Retainer Ring R3000-156
0.068
Retainer Ring R3000-162
0.068
Retainer Ring R3000-181
0.068
Retainer Ring R3000-187
0.068
Retainer Ring R3000-193
0.068
Retainer Ring R3000-200
0.068
Retainer Ring R3000-206
0.086
Retainer Ring R3000-212
0.086
Retainer Ring R3000-225
0.086
Retainer Ring R3000-244
0.086
Retainer Ring R3000-250
0.086
Retainer Ring R3100-025
0.029
Retainer Ring R3100-031
0.029
Retainer Ring R3100-037
0.029
Retainer Ring R3100-043
0.029
Retainer Ring R3100-068
0.046
Retainer Ring R3100-075
0.046
Retainer Ring R3100-081
0.046
Retainer Ring R3100-112
0.056
Retainer Ring R3100-125
0.056
Retainer Ring R3100-137
0.056
Retainer Ring R3100-143
0.056
Retainer Ring R3100-150
0.056
Retainer Ring R3100-156
0.068
Retainer Ring R3100-162
0.068
Retainer Ring R3100-168
0.068
Retainer Ring R3100-187
0.06
Retainer Ring R3100-196
0.068
Retainer Ring R3100-200
0.068
Retainer Ring R3100-212
0.086
Retainer Ring R3100-225
0.086
Retainer Ring R3100-237
0.086
Retainer Ring R3100-243
0.086
Retainer Ring R3100-262
0.086
