Retainer Ring R1000-137

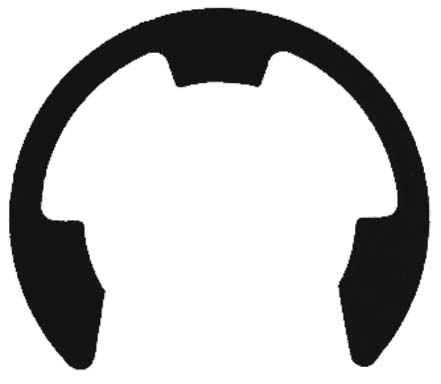

Retainer Ring R1000-137 The universally used radially assembled circlip for shafts. The groove is gripped by 3 tabs. Applications in vehicle construction, optical and electronic industry, and light mechanical industry. Cross reference to 1000, 1500, 5133, ms-16633 series. S.A.E. 1060-1090 Spring steel. Phosphate & oil finish. Industry #: 137, Shaft Size: 1-3/8” (1.375), Ring Outside Diameter: 1.875, Ring Thickness: 0.062, Groove Diameter: 1.23, Groove Depth: 0.07, Groove Width: 0.068, Weight (lbs.)/100 Pieces: 1.54, Package Quantity: 10
Key Details
| Brand: | Dynaline industries |
| Item No.: | 22872 |
| Status: | Stocking |
| pkgqty: | 10 |
| Specifications: | 0.068 |
| 0.07 | |
| 1.875 | |
| 0.062 |
